FEATURES
- Light weight drilling rig from aluminium

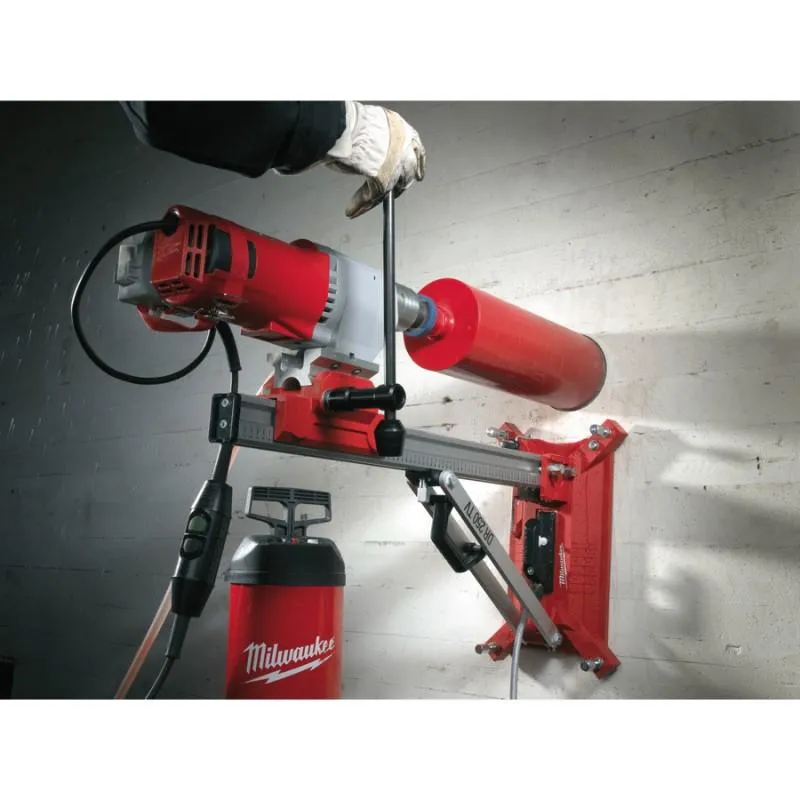

- Tilting (0 - 45°)
- Drill angle and depth display
- Quick-connect motor plate
- Integrated vacuum base plate (use with and without vacuum possible)
- Fine adjustment of feed speed
- Vertical and horizontal water level
- Drill hole centering device
- Leveling screws
- Feed handle attachable to both sides of rig
- Supplied with
″ Hex key, 6 mm Hex key, 17 x 19 wrench, quick-connect motor plate, 4 pcs. M8 x 25 mm screws, centering device, vacuum rubber seal

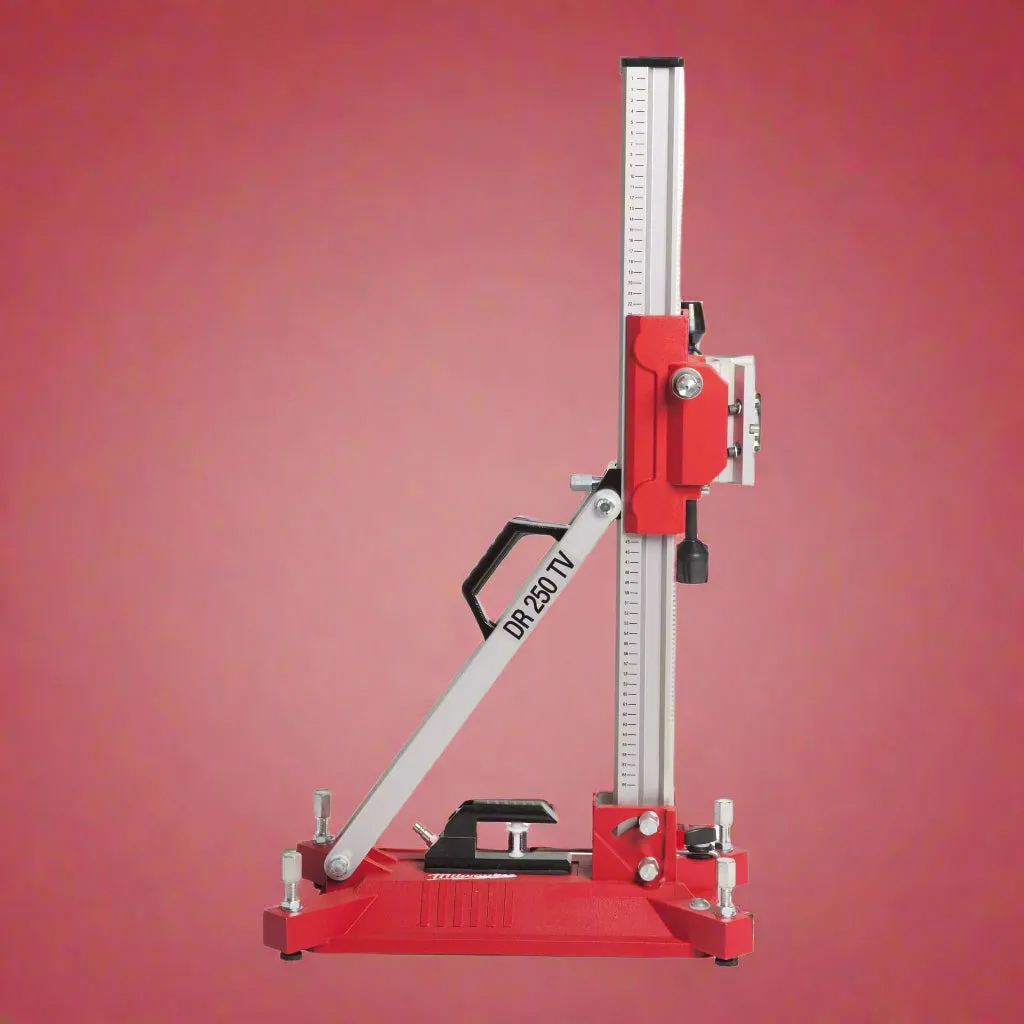

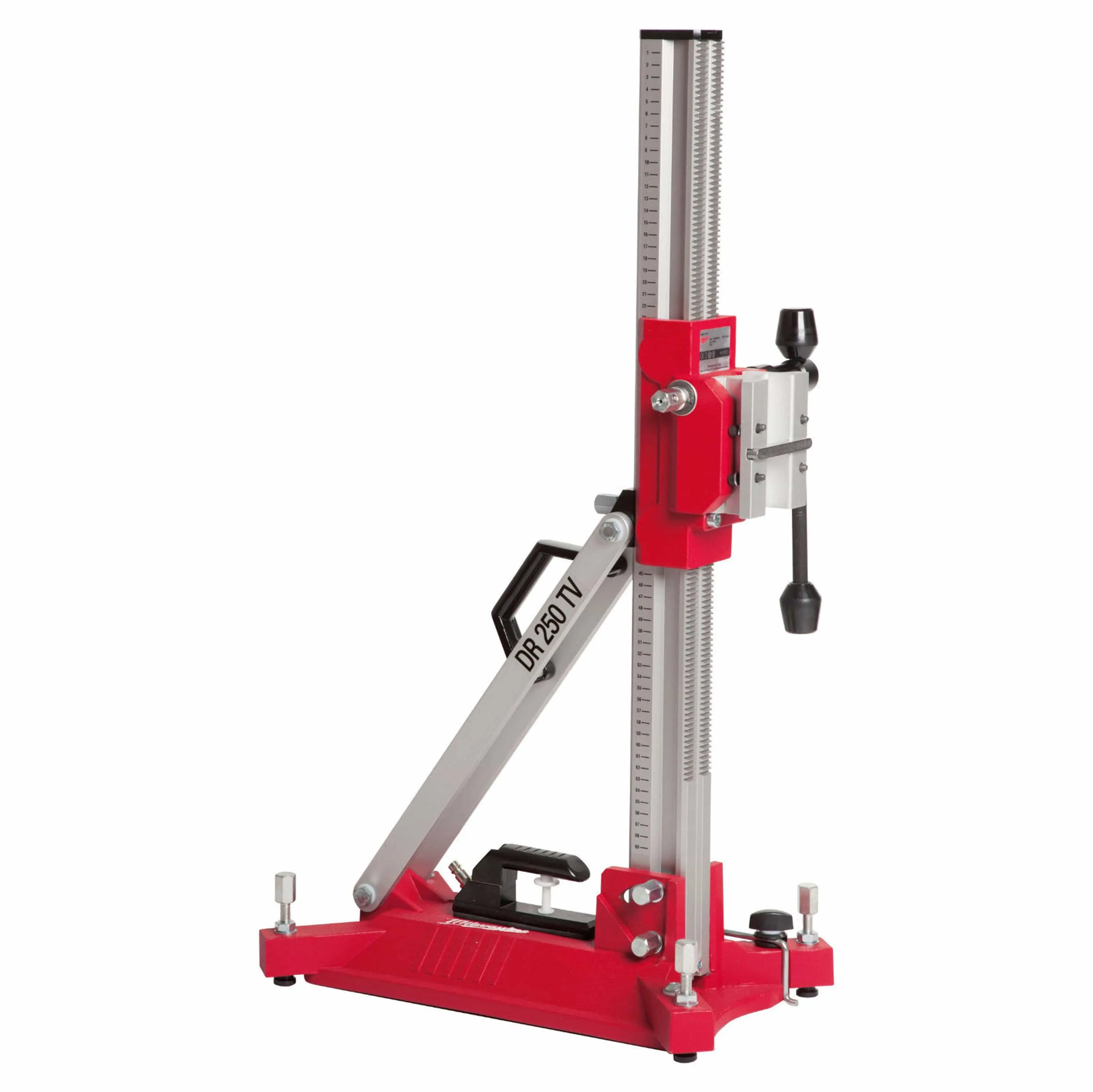

| PRODUCT SPECIFICATIONS | DR 250 TV |
|---|---|
| Angle capacity (°) | 45 |
| Article Number | 4933400590 |
| Base size (mm) | 276 x 467 |
| Height (mm) | 834 |
| Max. drilling core bit (mm) | 250 |
| Stroke length (mm) | 520 |
| Supplied in | No kitbox or bag supplied |
| Weight (kg) | 10.0 |
